1. What's the Big Deal with Network Topologies, Anyway?

Ever wondered how all your devices — your phone, your laptop, that smart fridge (yes, even that!) — communicate with each other? It's not magic, although sometimes it feels like it when the Wi-Fi suddenly drops. The secret sauce lies in network topologies. Think of them as the blueprints for how networks are built, dictating the arrangement and connections of devices. Understanding these layouts is essential for anyone involved in network design, maintenance, or even just troubleshooting your home Wi-Fi woes. It's the foundational knowledge that keeps the digital world humming along. So, let's ditch the jargon and dive in!

Choosing the right network topology is a bit like picking the perfect outfit for an occasion. You wouldn't wear a tuxedo to the beach, would you? Similarly, a business with hundreds of employees needs a different topology than, say, a small home network. Each topology has its own strengths and weaknesses, impacting everything from speed and reliability to cost and ease of management. Ignoring these factors can lead to network bottlenecks, security vulnerabilities, and a whole lot of frustration. Trust me, nobody wants to deal with a network that's constantly crashing during a crucial presentation.

We're not going to get bogged down in technical details. Instead, we'll focus on the eight basic network topologies that form the backbone of most networks. These are the building blocks you'll encounter in various forms, whether you're setting up a small office network or managing a large enterprise infrastructure. By understanding these basic layouts, you'll be well-equipped to make informed decisions about your own networking needs and troubleshoot common issues.

And don't worry, we'll keep it fun and relatable. We'll use analogies and real-world examples to make the concepts stick. After all, learning about network topologies shouldn't feel like pulling teeth. It should be an enlightening journey that empowers you to take control of your digital world. So, buckle up, and let's explore the fascinating world of network topologies!

The Eight Musketeers of Networking

2. A Deep Dive into Each Topology

Alright, let's get down to business and introduce the eight basic network topologies. Each one has unique characteristics that make it suitable for different situations. We'll explore their advantages, disadvantages, and common use cases to give you a clear picture of what they're all about.

1. Bus Topology: Imagine a long hallway with all the rooms connected to it. That's essentially a bus topology. All devices are connected to a single cable, called the bus. It's simple and inexpensive to set up, but if that main cable breaks, the entire network goes down. Think of it like that hallway being blocked — no one can get to their rooms! Bus topologies are generally outdated now and rarely used in modern networks.

2. Star Topology: Picture a wheel with the hub in the center and spokes radiating outward to each device. That's a star topology. Each device connects to a central hub or switch. If one device fails, it doesn't affect the rest of the network. However, if the central hub goes down, the entire network crashes. It's like the wheel losing its center — everything falls apart. Star topologies are very common in home and small office networks.

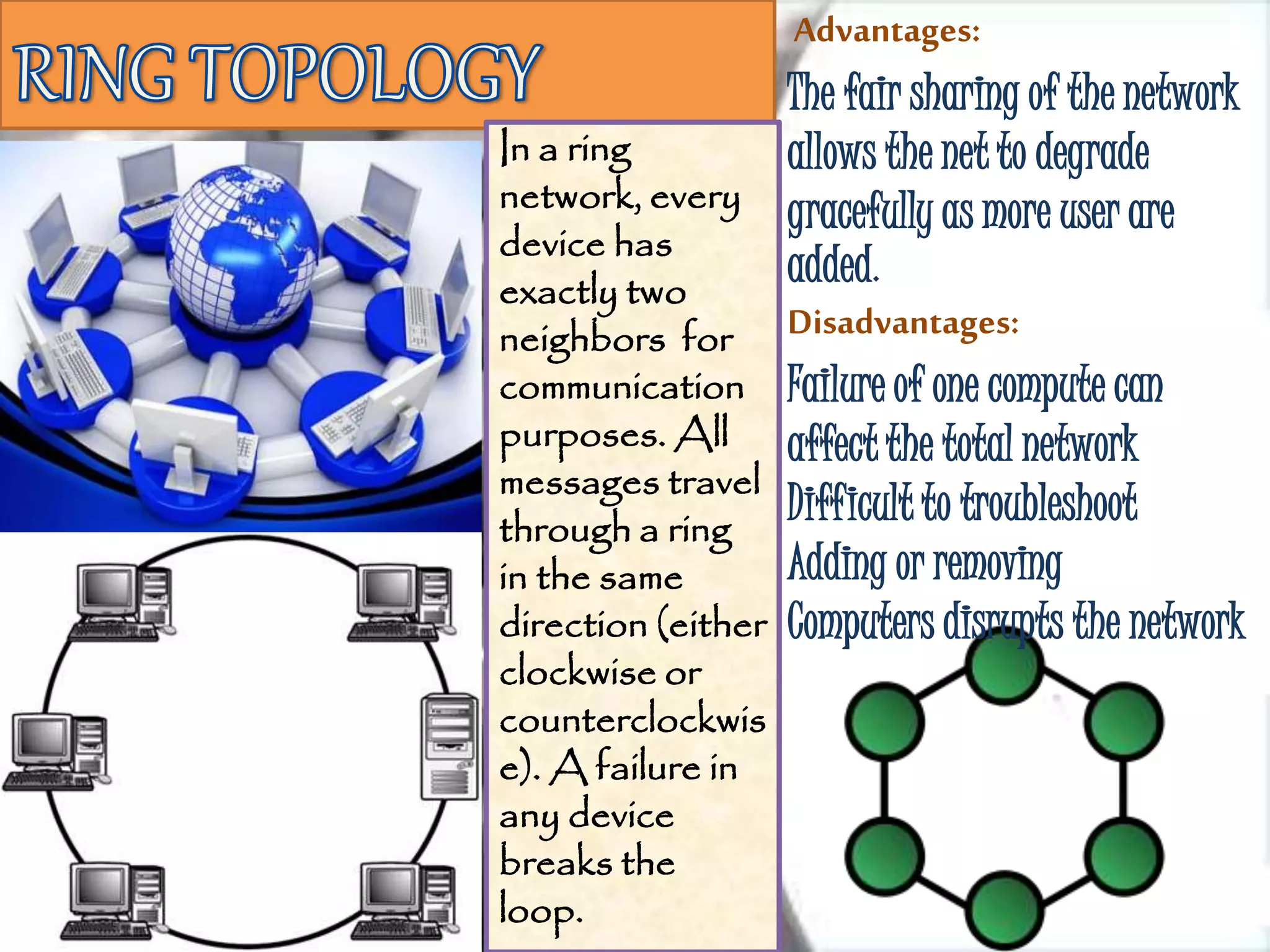

3. Ring Topology: Envision a circular chain where each device is connected to two others, forming a ring. Data travels in one direction around the ring. If one device fails, the entire network can be disrupted. Think of it like a broken link in the chain. Ring topologies are less common than star topologies but are still used in some specialized applications.

4. Mesh Topology: This is where things get interesting. In a mesh topology, each device is connected to multiple other devices. This provides redundancy and resilience — if one connection fails, data can still travel through other paths. Think of it like a complex web. Mesh topologies are expensive to implement but offer high reliability, making them suitable for critical applications like military communications.

5. Tree Topology: As the name suggests, this topology resembles a tree structure, with a root node and branches extending outwards. It's a combination of bus and star topologies. Tree topologies are often used in large organizations with hierarchical structures.

6. Hybrid Topology: This is a mix-and-match approach where you combine two or more different topologies to create a network that meets specific needs. For example, you might use a star topology for the main office network and a bus topology for a smaller department. Hybrid topologies offer flexibility but can be more complex to manage.

7. Point-to-Point Topology: The simplest of all topologies, it involves a direct connection between two devices. Think of it like a dedicated phone line between two offices. Point-to-point topologies are used for specific connections, such as connecting a computer to a printer.

8. Daisy Chain Topology: A Daisy Chain topology connects devices in a series, where each device is connected to the next one. It's like a string of Christmas lights. Data passes through each device until it reaches its destination. If one device fails, it can break the chain and disrupt the network. Daisy chain topologies are often used for connecting peripherals like external hard drives.

Choosing the Right Topology

3. Factors to Consider When Making Your Selection

Selecting the most suitable network topology isn't a one-size-fits-all situation. Several factors come into play, and it's crucial to consider them carefully before making a decision. Here's a breakdown of the key considerations:

Cost: The cost of implementation is a significant factor. Some topologies, like bus and star, are relatively inexpensive to set up. Others, like mesh, can be significantly more costly due to the increased cabling and hardware requirements. It's essential to balance cost with performance and reliability.

Scalability: How easily can you add more devices to the network in the future? Star and tree topologies are generally more scalable than bus and ring topologies. Scalability is crucial for businesses that anticipate future growth.

Reliability: How tolerant is the network to failures? Mesh topologies offer the highest reliability, as data can be rerouted through alternative paths if one connection fails. Bus topologies are the least reliable, as a single cable break can bring down the entire network.

Performance: How quickly can data be transmitted across the network? The topology can impact network performance. For example, bus topologies can suffer from performance bottlenecks as more devices are added. Star topologies generally offer better performance due to the central hub or switch.

Ease of Management: How easy is it to manage and troubleshoot the network? Star topologies are relatively easy to manage due to the central hub or switch. Mesh topologies can be more complex to manage due to the multiple connections.

Real-World Examples

4. Seeing the Big Picture

Let's take a look at some real-world examples of how these topologies are used in different scenarios:

Home Network: Most home networks use a star topology, with a router acting as the central hub. This allows multiple devices, such as computers, smartphones, and smart TVs, to connect to the internet. It's a simple and cost-effective solution for most households.

Small Office Network: Small offices often use a star topology as well, but with a switch instead of a hub. Switches are more intelligent than hubs and can improve network performance. This is a suitable solution for businesses with a moderate number of employees and devices.

Large Enterprise Network: Large enterprises typically use a combination of topologies, creating a hybrid network. They might use a tree topology for the overall network structure, with star topologies for individual departments. This allows for scalability and flexibility.

Data Center: Data centers often use mesh topologies for critical servers to ensure high availability and redundancy. This minimizes the risk of downtime and ensures that data is always accessible.

Troubleshooting Common Network Issues

5. Understanding How Topologies Affect Troubleshooting

Knowing your network topology can be incredibly helpful when troubleshooting issues. Here's how:

Bus Topology: If you're using an older bus topology and the entire network goes down, the first thing to check is the main cable. Look for any breaks or loose connections. A cable tester can help you identify the problem area.

Star Topology: If a single device in a star topology can't connect to the network, check the cable connecting that device to the hub or switch. Also, ensure that the device's network settings are configured correctly. If the entire network is down, the problem is likely with the central hub or switch.

Ring Topology: In a ring topology, a break in the ring can disrupt the entire network. Use a cable tester to identify the location of the break. Also, check the devices on either side of the break for any issues.

Mesh Topology: Troubleshooting a mesh topology can be more complex due to the multiple connections. Use network monitoring tools to identify any failed connections and reroute traffic accordingly.

By understanding the topology of your network, you can quickly narrow down the potential causes of network problems and resolve them more efficiently.

FAQ

6. Common Questions Answered

Here are some frequently asked questions about network topologies:

Q: Which topology is the most reliable?
A: Mesh topology is generally considered the most reliable due to its redundant connections. If one connection fails, data can still travel through other paths.

Q: Which topology is the cheapest to implement?
A: Bus topology is typically the cheapest to implement, as it requires the least amount of cabling. However, it's also the least reliable.

Q: Can I combine different topologies in my network?
A: Yes, you can create a hybrid topology by combining two or more different topologies. This allows you to tailor the network to your specific needs.
