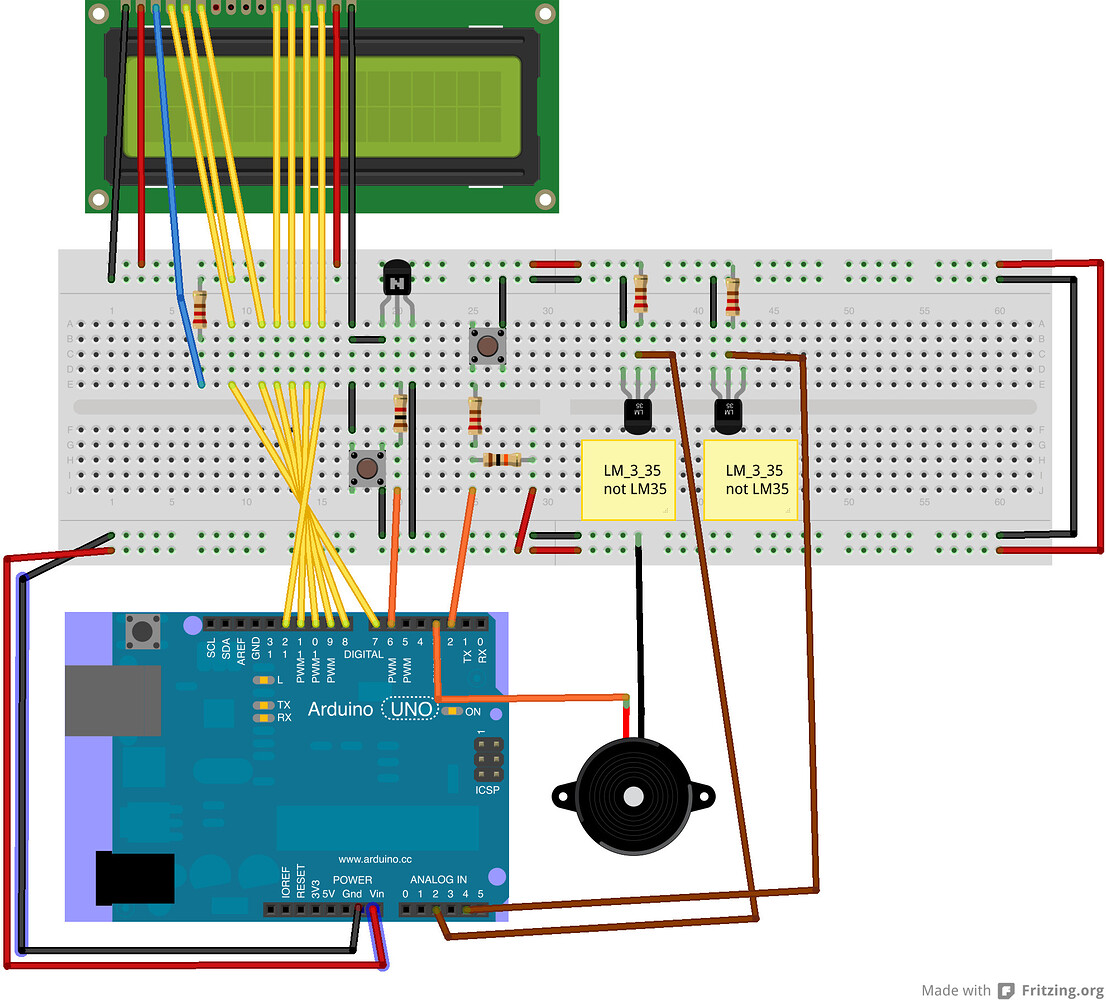

Understanding Arduino Voltage

1. What's the Deal with Arduino Power?

So, you're diving into the world of Arduino, huh? Awesome! It's like giving your electronics a brain. But just like a brain needs the right kind of fuel, your Arduino needs the right voltage. You're probably wondering about that power supply sitting on your workbench, maybe a 12-volt job, and thinking, "Can I just plug this in?" Well, hold your horses! It's not quite as simple as plugging in a toaster.

Think of your Arduino as a delicate flower. Give it too much water (voltage), and it'll drown. Not enough, and it'll wither away. Arduino boards are generally designed to operate at 5 volts or 3.3 volts. These are their happy places, their Goldilocks zones. Deviate too far, and you risk letting out the magic smoke. And trust me, once the magic smoke escapes, it's really hard to put back in!

Now, directly connecting a 12-volt power source to an Arduino's 5V pin is generally a no-no. You'll likely fry the microcontroller, and nobody wants that. It's like feeding your pet hamster a steak — it's just not gonna end well. But, there's hope! There are ways to safely use a 12-volt power supply with your Arduino, and we'll get to those in a bit. Don't despair just yet!

Before we get deeper, let's be clear: using the wrong voltage can permanently damage your Arduino. We're talking game over. So, pay close attention to the specs of your particular Arduino board and the voltage of your power supply. Prevention is always better (and cheaper!) than a fried board. We want you making robots, not ordering replacements!

12 Volt & Arduino

2. Why 12 Volts Can Be Problematic

Okay, let's get to the heart of the matter. Why is 12 volts potentially "too much" for Arduino? Well, it comes down to how the Arduino is designed to handle power. As we discussed, the core components of the Arduino typically run at 5 volts (or sometimes 3.3 volts). Supplying 12 volts directly to the 5V pin would essentially be forcing too much electricity into circuits that can't handle it. Imagine trying to shove an elephant through a mouse hole! It's not going to fit, and things are going to break.

While directly connecting 12V to the 5V pin is a guaranteed recipe for disaster, the Arduino does have a voltage regulator that can handle a higher input voltage. This regulator is usually connected to the Vin pin or the barrel jack. However, even using the Vin pin with 12V requires caution. The regulator converts the higher voltage down to the 5V needed by the microcontroller. This conversion process generates heat, and too much heat can damage the regulator itself. It's like your car engine overheating after a long drive uphill.

The amount of heat generated depends on the current being drawn by the Arduino and its connected components. If you're just powering the Arduino itself and a few LEDs, a 12-volt input might be fine. But if you're driving motors, sensors, or other power-hungry devices, the regulator could get overloaded and overheat, leading to malfunction or even permanent damage. Think of it like trying to power your entire house with a single extension cord — it's just not designed for that kind of load.

So, while the Arduino can technically accept 12 volts through its Vin pin or barrel jack, it's not always the best idea. It's crucial to understand the limitations of the voltage regulator and the current requirements of your project. Overestimating the load is always wiser than underestimating. It's like packing extra socks for a camping trip you might not need them, but you'll be glad you have them if you do!

The Safe Way

3. Taming the 12-Volt Beast

Fear not, aspiring Arduino engineers! Just because directly connecting 12 volts can be risky doesn't mean you can't use that power supply at all. The key is to tame that 12-volt beast and bring it down to a manageable level. This is where voltage regulators and step-down converters come in handy. Think of them as translators, converting one language (voltage) into another that your Arduino understands.

Voltage regulators, like the LM7805, are simple and inexpensive components that can take a higher input voltage (within their specified range) and output a stable 5 volts. They're like little dams controlling the flow of electricity. However, as mentioned before, they dissipate excess voltage as heat. For projects with higher current demands, this can be a problem.

Step-down converters, also known as buck converters, are a more efficient alternative. These devices use switching circuitry to convert the higher voltage to a lower voltage with minimal heat generation. They're like efficient engines, converting energy without wasting too much. This makes them ideal for projects that draw a lot of current or need to run for extended periods.

Using a step-down converter to drop the 12 volts down to 5 volts before connecting it to the Arduino's 5V pin is often the safest and most reliable way to power your project. This bypasses the Arduino's onboard regulator altogether, reducing the risk of overheating and ensuring a stable power supply. It's like giving your Arduino a direct line to the juice it needs, without any unnecessary detours.

Considering Your Project's Needs

4. It's Not Just About the Volts!

Voltage is important, no doubt. But it's only half the story. The amount of current your project draws is equally crucial when deciding how to power your Arduino safely. Think of voltage as the pressure of water in a pipe, and current as the amount of water flowing through it. Too much pressure can burst the pipe, and too much water can overflow the system.

Each component you connect to your Arduino — LEDs, motors, sensors, displays — draws a certain amount of current. Add up the current requirements of all these components, and you get the total current draw of your project. The Arduino's onboard voltage regulator has a limited current capacity. Exceeding this capacity can lead to overheating and damage. This is where your project's needs come into play.

If you're running a simple project with just a few LEDs and sensors, the Arduino's onboard regulator might be sufficient, even with a 12-volt input (through Vin). However, if you're driving motors, powering multiple LEDs, or using other power-hungry components, you'll likely need an external power supply with sufficient current capacity. It's like choosing the right size water pump for your garden — too small, and your plants will wither; too big, and you'll waste energy.

Carefully consider the current requirements of all your components and choose a power supply and voltage regulation method that can handle the load safely and efficiently. Datasheets for each component will list its current consumption. A multimeter can also be used to measure current draw. This little bit of planning can save you from a lot of headaches (and fried Arduinos!) down the road. Its always better to have a little extra headroom in your power supply than to push it to its limits.

Practical Examples & Safety Tips

5. Putting it All Together

Okay, enough theory! Let's look at some practical examples to solidify your understanding. Imagine you're building a simple robot car that needs to be powered by a 12-volt battery pack. The motors require a significant amount of current, far exceeding what the Arduino's onboard regulator can handle. In this case, you'd definitely want to use a step-down converter to bring the 12 volts down to 5 volts for the Arduino and a separate power supply (or voltage regulation) for the motors.

Another common scenario is powering a strip of LEDs. LED strips often require 12 volts, but the Arduino's digital pins output 5 volts. You can't directly connect the LED strip to the Arduino's output pins. Instead, you'd use transistors to switch the 12-volt power to the LED strip under the control of the Arduino. This allows the Arduino to control the LEDs without directly powering them. It's like using a relay to control a high-voltage circuit with a low-voltage signal.

When working with electricity, safety is paramount! Always double-check your wiring before applying power. Make sure all connections are secure and that there are no exposed wires. Use a multimeter to verify voltages and currents. If you're unsure about something, don't be afraid to ask for help from an experienced electronics enthusiast or consult online resources. It's better to be safe than sorry — especially when dealing with potentially harmful voltages and currents.

Finally, remember that Arduino projects are all about experimentation and learning. Don't be afraid to try new things, but always proceed with caution and a healthy respect for electricity. With a little planning and a good understanding of the principles involved, you can safely and effectively use a 12-volt power supply to bring your Arduino creations to life. Happy tinkering!

FAQ

6. Q

A: Yes, you can! The Arduino's Vin pin typically accepts a voltage range of 7-12V. A 9V battery falls within this range. However, 9V batteries often don't provide a lot of current, so they might not be suitable for projects with high current demands. Also, be aware that the onboard regulator will be dropping 4V to get the 5V the Arduino needs, so expect some heat, and shorter battery life compared to a power supply closer to 7V.

7. Q

A: If you connect a voltage that's significantly higher than the Arduino's operating range (like directly connecting 12V to the 5V pin), you'll likely fry the microcontroller and other components. It's like a power surge that overloads the circuits. If you connect a voltage that's too low, the Arduino might not function properly or at all. It's like trying to run a car on fumes.

8. Q

A: The best place to find information about Arduino power requirements is the official Arduino website and the datasheet for your specific Arduino board. These resources provide detailed specifications for voltage ranges, current limits, and other important information. There are also many online forums and communities where you can ask questions and get help from experienced Arduino users. Remember, Google is your friend!
